What you need:
This project uses two files in this folder:
C:\Users\Administrator\Desktop\Practical Malware Analysis Labs\BinaryCollection\Chapter_1L
The two files are Lab01-01.exe and Lab01-01.dll.
In a Web browser, go to

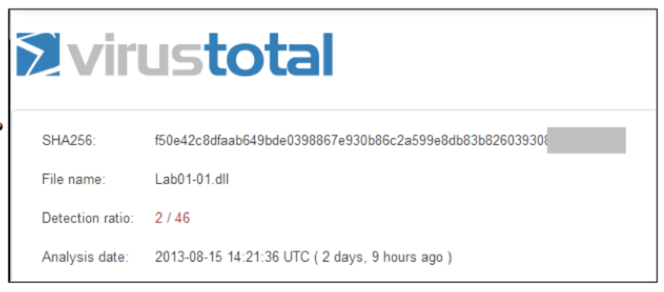

Upload Lab01-01.dll. As shown below, some of the engines detect it as malware.
VirusTotal compares a file to a database of antivirus engines. You can upload files, but that may alert attackers that you have detected an intrusion. Using it to search for a hash value of a sample is safer.
PEview shows the sections that make up a PE (Portable Executable) file.
Click Start and type PEVIEW
Launch PEview. In PEview, click the opening folder icon and open the Lab01-01.exe file.

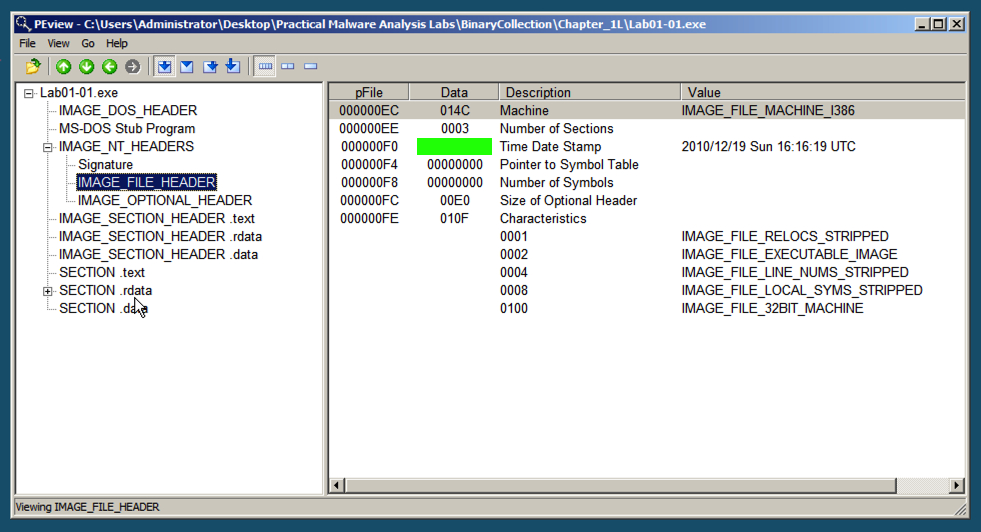

On the left side, expand the IMAGE_NT_HEADERS container and click IMAGE_FILE_HEADER.
The "Time Date Stamp" shows when the files were compiled. This is often used as an indication of the time zone the attackers live in. Files that were compiled at the same time are also often regarded as part of the same package.
Find the Data that is covered by a green box in the image below. Enter it in the form below to record your success.
Use the form below to provide the Data (redacted in the image above)
PEiD shows what language the sample was written in, or what packer was used if it's packed.
Click Start and type PEID
Launch PEid. In PEid, in the "File" line, at the right side, click the ... button.
Open the Lab01-01.exe file.

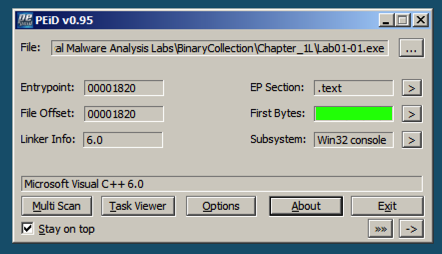

On the bottom left, you can see that this file was written in "Microsoft Visual C++", as shown below.
On the right side, note the "First Bytes", covered by a green box in the image below. Enter them in the form below to record your success.
Use the form below to provide the First Bytes (redacted in the image above)
BinText is a handy tool to view strings, a very easy and powerful way to analyze a file.
Click Start and type BinText
Launch BinText. In BinText, click the Browse... button.
Open the Lab01-01.exe file and click Go.

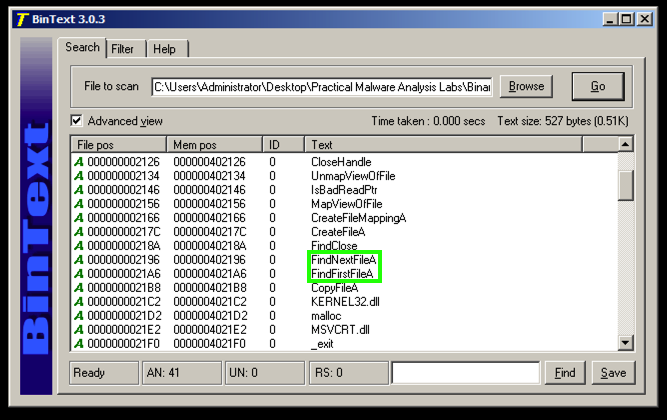

Notice FindNextFileA and FindFirstFileA, as shown below. These are Windows API functions used to search through a directory.

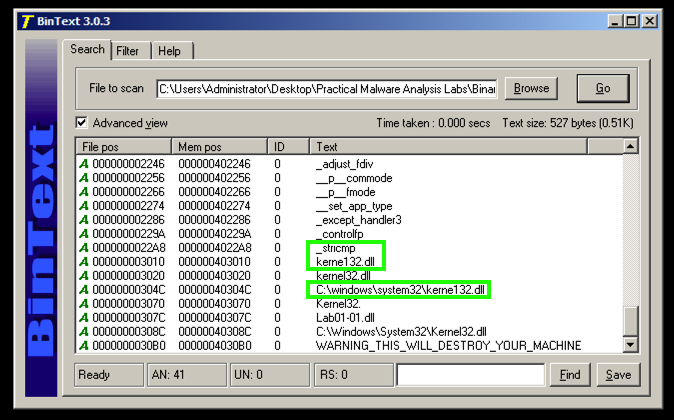

Scroll down and find these items, as shown below.
In BinText, open the Lab01-01.dll file and click Go.

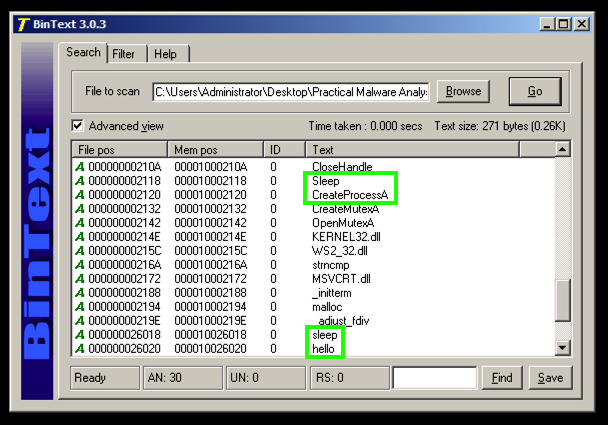

Notice these items, as shown below:

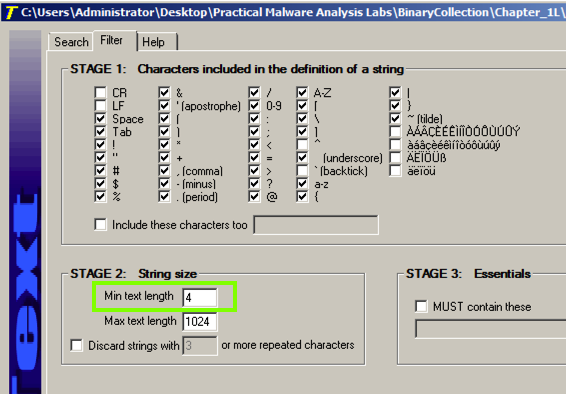

The command to launch a program is missing. To see it, click the Filter tab and adjust the "Min. text length" to 4 as shown below.
Click the Search tab. At the top right, click Go.
Now you can see that the command to launch a program is exec, as shown below.
Near the bottom, find the IP address beginning with 127, covered by a green box in the image below. Enter it in the form below to record your success.
Use the form below to provide the IP Address (redacted in the image above):
Click Start and type Dependency
Launch Dependency Walker. In Dependency Walker, click the opening folder icon and open the Lab01-01.exe file.
The top left pane is called the "Module Dependency Tree View". It shows the EXE file and the two Windows libraries it uses: MSVCRT.DLL and KERNEL32.DLL, as shown below.

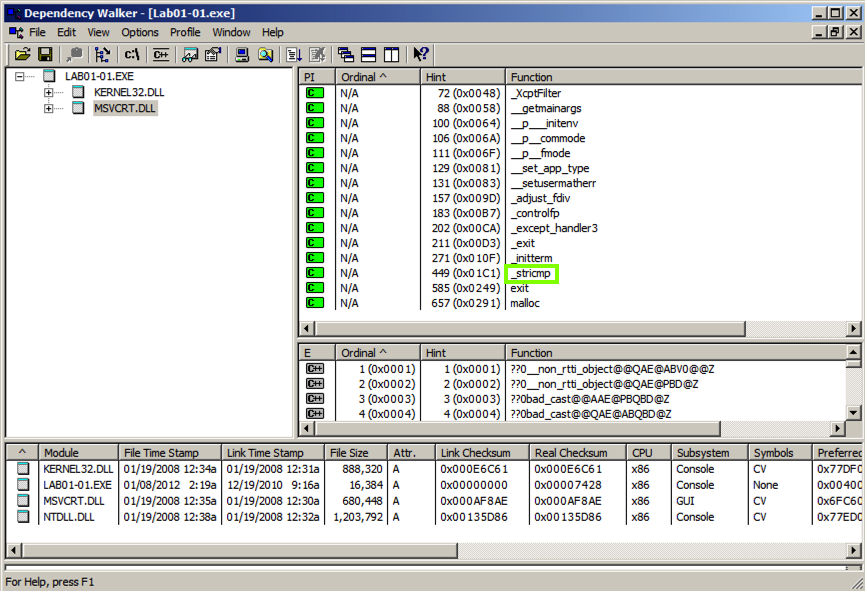

In the top left pane, click MSVCRT.DLL. The top right pane shows "Parent Imports". These are the functions the EXE file uses from the library.
As shown below, this executable uses only a small number of library functions, and none of them indicate much about its purpose. One of them is named _stricmp, which indicates that this progam performs a string copmarison, but that's a very common operation.
In the top left pane, click KERNEL32.DLL.

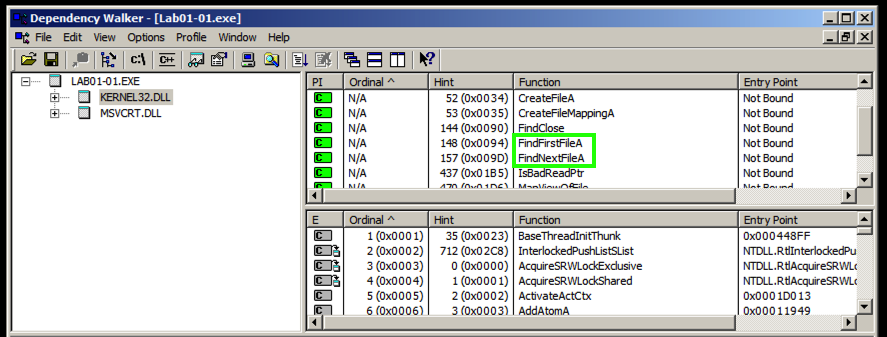

The top right pane shows that this file uses several functions that manipulate files, including FindNextFileA and FindFirstFileA, as shown below.
This suggests that the malware searches through the file system.
In Dependency Walker, open Lab01-01.dll.

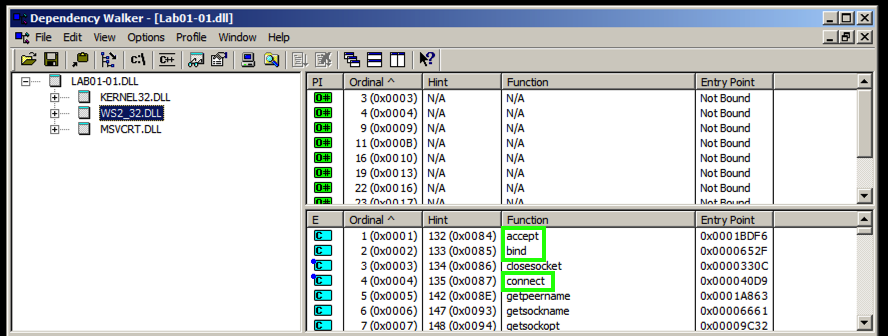

In the top left pane, partially collapse the tree to match the image below and click WS2_32.DLL.
The top right pane doesn't show function names this time, it only shows "Ordinal" numbers. This is called Linking by Ordinal, and it's an annoyance to us because we can't easily see what functions are in use.
However, the center-right pane shows the Exports of WS2_32.DLL, which include accept, bind, and connect. These are the standard Berkeley Sockets functions used for networking. This suggest that the malware performs some networking functions, such as connecting to a server and opening a listening port.

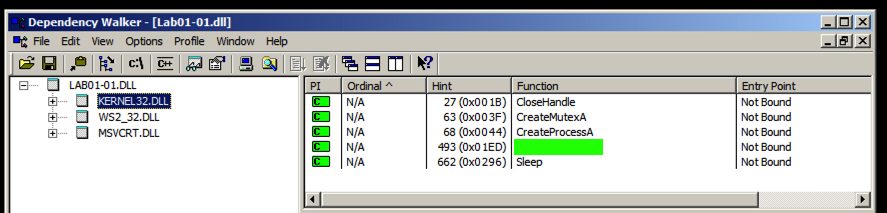

In the top left pane, click KERNEL32.DLL. The top right pane shows the five "Parent Imports", which include CreateProcessA and Sleep, as shown below.
Find the function name that is covered by a green box in the image below. Enter it in the form below to record your success.
Use the form below to provide the Function name (redacted in the image above)
Analyze the sample Lab01-04.exe It downloads a file from this domain: practicalmalwareanalysis.com
Find that file's name and use the form below to get your points.
Use the form below to provide the
Filename like this:keylog.txt
Analyze the sample Lab01-04.exe
It imports a function from WINTRUST.DLL
Find that function's name and use the form below to get your points.
Use the form below to provide the
Function name like this:AdjustTokenPrivileges
Find the datestamp showing when sample Lab01-04.exe was compiled.
Use the form below to provide the Date (like this: 1999-01-31)
For more information about using Dependency Walker, see ths tutorial:
Analyzing dependencies with Dependency Walker
